Solar Panel Optimizer OPT-02
PV Panel Optimizer for on/off grid PV system 600W
The MOKOEnergy Solar Panel Optimizer performs true module-level MPPT to maximize energy yields from each panel while providing enhanced safety features beyond code requirements. For a variety of complex application scenarios, the power generation of the components equipped with the optimizer increases by more than 30% compared to the normal components.
Key Features of Solar Panel Optimizer
> True Panel-Level MPPT: Optimizes power for each module, even with shading or soiling.
> 30% More Energy: The OPT-02 outperforms traditional inverters by over 30% on complex roofs.
> Superior Safety: Features arc fault protection and rapid shutdown to reduce fire risks.
> Quick, Easy Install: Lightweight panel optimizer offers integrated grounding with TS4 trunk cable for cost-effective setup.
Parameters of Solar Panel Optimizer OPT-02
DC Input
Max input power
600W
Operation voltage range
7-60V
MPPT Voltage Range
7-60V
Max input Current
16A
Over-current protection
16A
Over-temperature protection
150℃
DC Output
Max output current
16A
Output voltage limit
42V
Max system voltage
1500V
72-cell module in serial @1 500V
36 pcs
72-cell module in serial @1100V
26 pcs
72- cell module in serial @1000V
24 pcs
Efficiency
Peak fficiency
99.5%
Power loss @5A
0.9W
Power loss @8A
1.4W
Power loss @12A
2.9W
Power loss @15A
4.5W
Power loss @20A
7.2W
General data
Model Number
OPT-02
Warranty
25-year
Usage
Solar Panel
Warranty
25-year
Dimensions (LxWxH )
103x105.3x21.3mm
Weight
0.65Kg
input/output cable length
150/1050mm
input/output cable size
4mm2(12AWG) / 4mm2(12AWG)
Teminals
MC4(compatible)
Environmental Protection Rating
IP67/NEMA6
Relative humidity
0-100%RH
Operating temperature range
-40-+65℃
Cooling
natural cooling
Applications of Solar Panel Optimizer
Residential Rooftops
Mitigate shading impacts while simplifying installation with integrated grounding.
Commercial Flat Roofs
Maximize yields on complex layouts with obstructions or underperforming areas.
Remote Off-Grid Systems
Module-level monitoring data enables remote diagnostics and O&M.

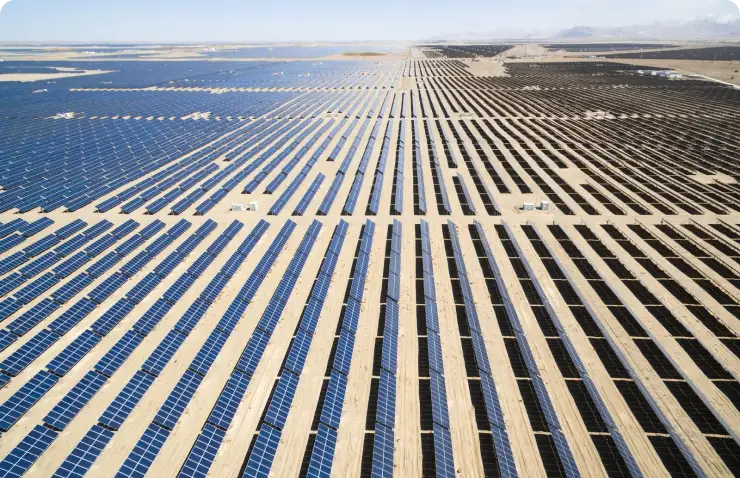

Hot/Humid Environments
Ruggedized design for reliable operation in deserts, tropics or coastal areas.
FAQs of Solar Panel Optimizer
Module-level MPPT recovers losses from row shading, soiling or aging mismatch between modules in a string.
Built-in arc fault protection de-energizes modules if an arcing event occurs, while rapid shutdown reduces voltage for emergency operations.
By tracking the true max power point of each module, optimizers can boost energy harvest by up to 25% over string inverter systems.
