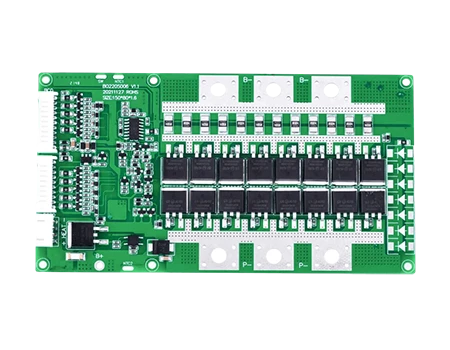

BMS for Home Energy Storage BES-04
24V 50A Home Energy Storage Battery Protection Board
MOKOEnergy BMS optimizes large 24-80V lithium storage batteries up to 200Ah. Advanced protection prevents faults and maximizes system lifespan. Integrated contactors and WiFi/cloud connectivity provide total monitoring and control. 10-year warranty. Makes home solar/backup power safe and reliable.
Key Features of BMS for Home Energy Storage
> Compact Design: Maximizes capacity for small home spaces
> Simple Installation: Easy setup for DIY or professional installation
> App Integration: Seamlessly connects with popular home energy management apps
> Grid Services Ready: Enables participation in utility demand response programs
> Modular Scalability: Easily adds supplemental battery modules as needed
> Weatherproof Enclosure: Protects against outdoor elements for backyard installations
Parameters of BMS Board for Home Energy Storage
Model Number
BES-04
Input voltage range
24V to 80V
Continuous Discharge Current
100A
Maximum Charge Current
50A
Supported Battery Chemistry
Lithium-ion, LiFePO4
Cell Count Range
Up to 200 cells
Operating Temperature Range
-20°C to 60°C
Protections
Over-voltage, under-voltage, over-current, short circuit, high/low temperature
Communication Interface
CAN 2.0B
Cell balancing current
500mA per cell
Measurement Inputs
Voltage, current, temperature
Board dimensions
178mm x 127mm x 38mm
Weight
1kg
Ingress protection rating
IP66 and IP69K
Vibration resistance
10G pea
Remote monitoring
WiFi/Ethernet, cloud portal
Other features
Integrated contactors, current sensors, self-diagnostics
9 Major Protections on BMS for Home Energy Storage

Overvoltage Protection

Undervoltage Protection

Short Circuit Detection

Cell Voltage Monitoring

State-of-Charge Estimation

Thermal Management

Fault Diagnosis

State-of-Health Estimation

Communication Interface
FAQs of BMS Solution for Home Energy Storage
The BMS optimizes battery performance for efficient home energy storage, extended battery life, and minimized downtime during energy storage operations.
Our BMS seamlessly interfaces with leading smart home platforms using WiFi, APIs and communication protocols like Modbus.
