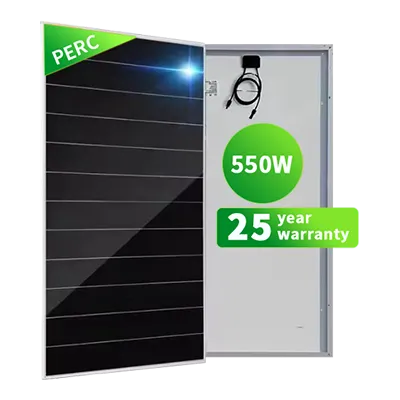

Monocrystalline Solar Panels SP-01
550w High efficiency Mono half-cell module
Combined our exclusive Mono PERC technology with half-cut cells and a multi-busbar design, the multi-busbar design can offer outputs ranging from 400 to 700 watts and industry-leading efficiencies of up to 22.9%.
Key Features of Monocrystalline Solar Panels
> Mono PERC Cells: improving light absorption to possess a higher efficiency.
> Half-Cut Architecture: achieving a 50% reduction of internal resistive losses.
> Multi-Busbar Design: improving reliability by decreasing resistance via 9 busbars.
> PERC Cell Reflector: ensuring better light absorption to maximize energy conversion.
> Anti-Reflective Coatings: further enhancement in light capture and productivity.
> Robust Construction: tempered glass, IP68 junction box, and anodized aluminum frame.
Parameters of Monocrystalline Solar Panels SP-01
Industry-specific attributes
Cell size:
210mm * 210mm
Type:
PERC, Half Cell, All Black
Panel Efficiency:
22.9%
Warranty:
25Years
Other attributes
Model Number:
SP-01
Application:
Solar Power System
Material:
Monocrystalline Silicon
Max. Series Fuse:
30/35A
Power Tolerance:
0~+5W
Weight:
27.6kg
Certifications :
CE/RoHS/ISO/TUV
Electrical Characteristics at Standard Test Conditions(STC)
Maximum Power-Pm [W]
400
500
550
600
700
Open Circuit Voltage-Voc [V]
37.89
42.82
44.94
45.34
45.54
Short Circuit Current-Isc [A]
13.52
14.20
14.4
14.5
18.81
Maximum Power Current-lm [A]
14.690
14.672
14.672
14.543
14.012
Mechanical Characteristics
Dimensions
2279 x1143 x 35mm (LxWxH)
Front Glass
White toughened safety glass, 3.2mm
Cells
210*210 PERC solar cells
Back Sheet
high weatherability backsheet
Frame
Anodized aluminum profile
Junction Box
IP68,TUV,two diodes
Cable
Length 1200mm, 1x 4mm2
Connector
Compatible with MC4
Temperature Characteristics
NMOT
42.3°C(±2)
Temperature Coefficient of Voc
-0.27%/°C
Temperature Coefficient of ISC
0.04%/°C
Temperature Coefficient of Pm
-0.34%/°C
Maximum Ratings
Maximum System Voltage [V]
DC 15001EC)
Series Fuse Rating [A]
20
Maximum Surface Load Capacity [Pa]
5,400
Temperature Range [°C]
-40 ~ +85
Withstanding Hail
Maximum diameter of 25 mm with impact speed of 23 m/s
Where Can Monocrystalline Solar Panels Be Harnessed in?

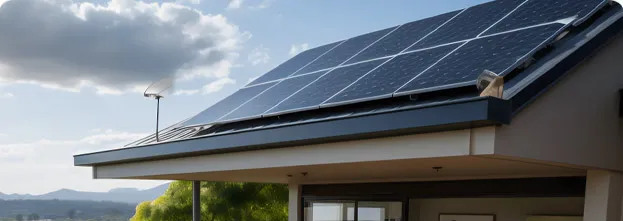

Residential Rooftops
For household roofs, the SP-01 can improve energy production to the maximum extent, so as to provide sustainable energy to residential applications and reduce the use of electricity.

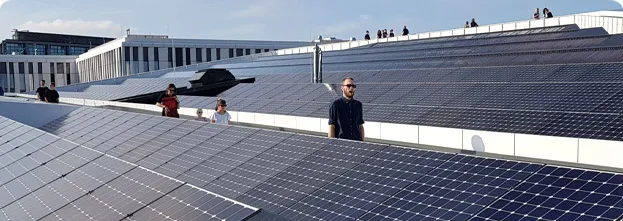

Commercial & Industrial facilities
By virtue of super efficiency and watts outputs, mono solar panels can optimize the utilization of roof areas and enhance financial profits and rewards.

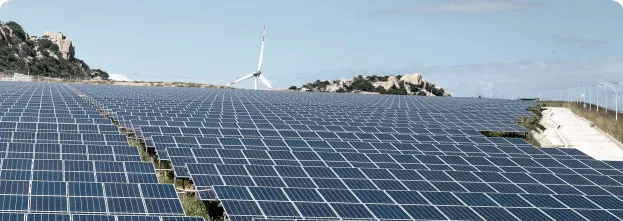

Solar Farms for Utilities
These monocrystalline panels also have the characteristic of tolerating tough environments, making them an attractive option for large-scale solar farms.

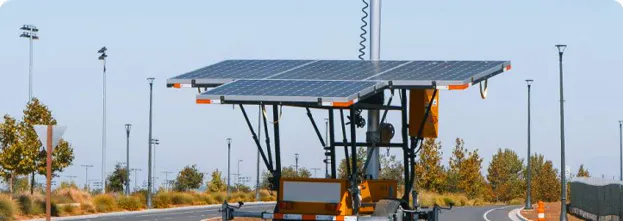

Off-Grid PV Systems
Our monocrystalline solar panels can also be applied to off-grid systems as we have enhanced their capacity to resist weak light and high temperatures.
FAQs of Monocrystalline Solar Panels
The efficiency of energy conversion can be greatly increased by capturing more light with a back-passivated reflector layer.
Compared to traditional cells, the half-cut cells that are electrically divided can effectively improve shade tolerance.
Numerous busbars can create more current paths, so as to reduce resistive losses and improve the performance of the whole module.
Including damp heat, thermal cycling, humidity freeze as well as mechanical load testing. Per IEC standards, our Mono solar panels have made stringent tests to ensure the sturdiness of panels.
